Shoals Harpoons

Shoals Harpoon DIY Kit

Shoals Harpoon DIY Kit

Regular price
Regular price Sale price
Sale Sold out

All Shoals Harpoon components are made locally here in New England using the finest raw materials. We supply 3/8 inch #10-24 stainless steel button screws which secure the head and rear section pieces of the harpoon to a customer-supplied length of 3/4 inch schedule 40 aluminum pipe or conduit.

To assemble: Measure 1 inch from the end of the pipe on both ends — mark where the screws will fit the pipe and drill a starter hole —2 button socket screws secure each end piece of the harpoon in place. Simple!

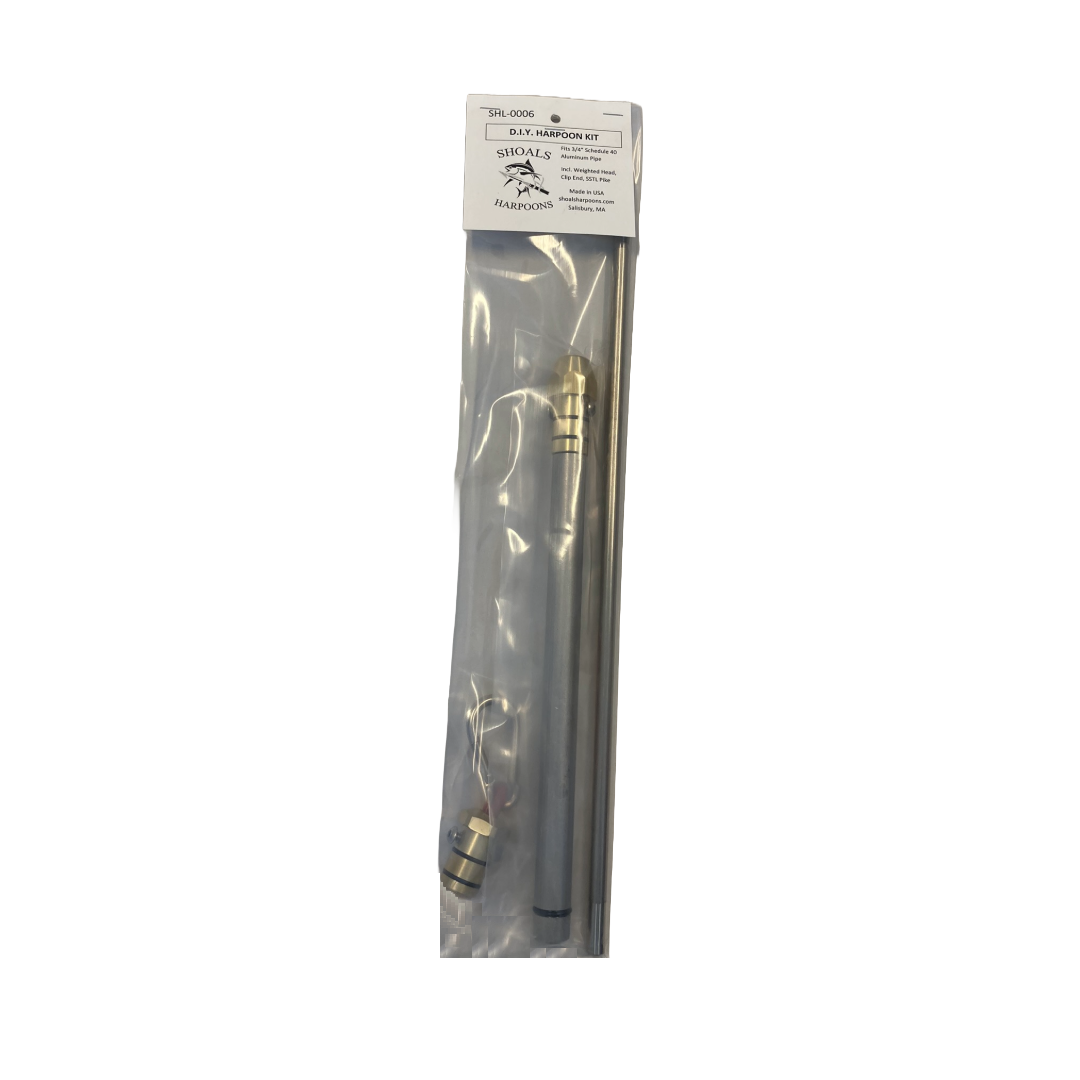

The kit consists of the following parts:

1 – Harpoon brass and stainless-steel weighted head approx. 1lb 6oz (weighted to throw at fish under water) drilled and tapped for mounting into customer-supplied 3/4 Inch Schedule 40 aluminum pipe/conduit harpoon shaft.

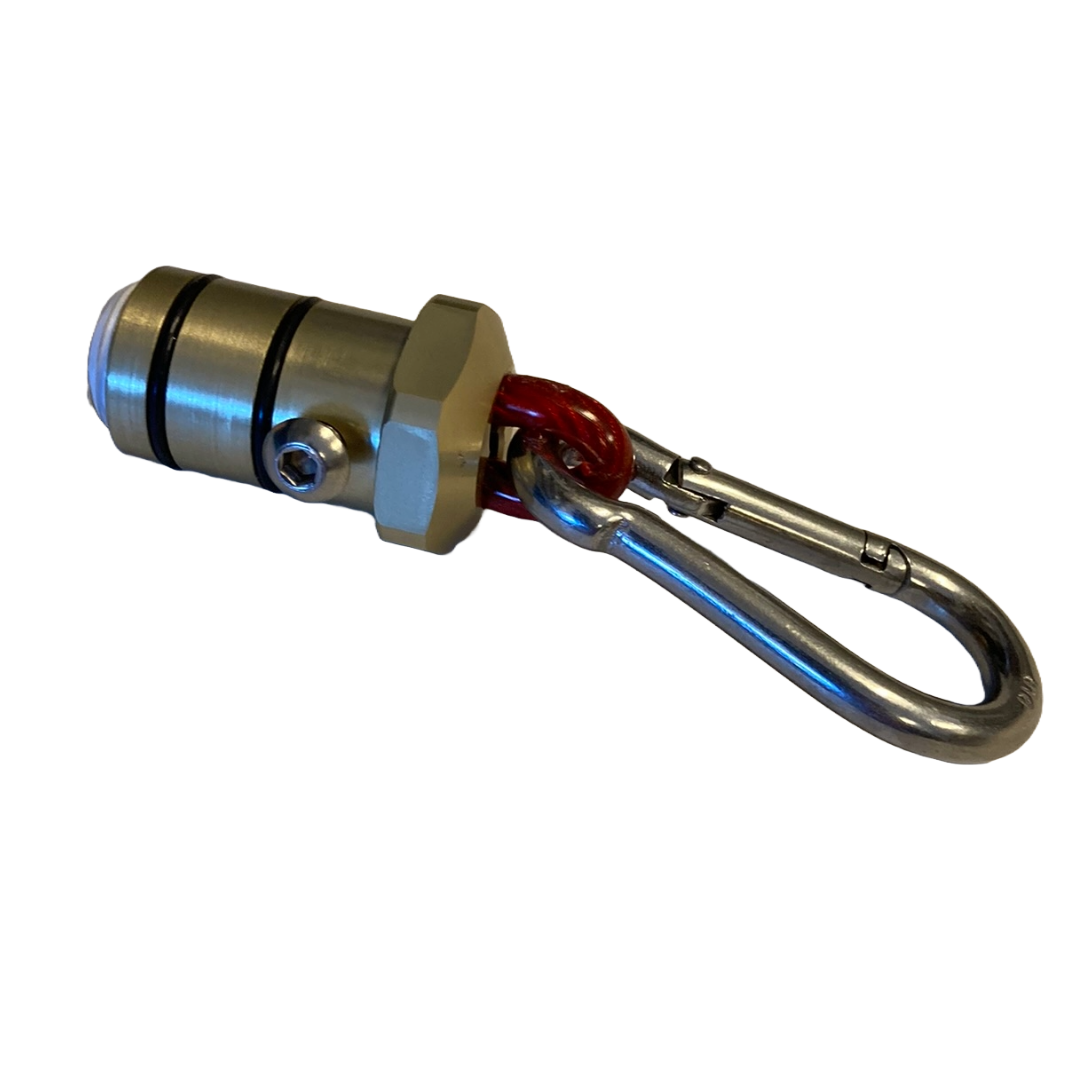

1 – Harpoon end cap with carabiner clip – unique machined piece that holds carbineer included (to clip around main harpoon line) —machined to fit inside schedule 40 aluminum conduit harpoon shaft
1 – Stainless Pike 3/8 inch –approx. 16 inches long —-screws into end of harpoon head
1 — Mounting Hardware —- Screws to attach head and end cap to harpoon pipe/shaft.
